Suitable height can be variably adjustable from 840mm to 930mm. Specifications are subject to change without notice.
Features
● The fastest bundler in this class. TP-WII can produce 26 bundles a minute, or 1,560 bundles an hour. Ensures high efficiency and productivity.
● Both craft and film tape can be used by one machine Our unique features enable our single machine to use both craft and film tapes.
● No warm up time required to start Bundling is ready to start immediately after turning on the power. It increases operation efficiency greatly.
● User friendly The guide rail ensures making tape loop properly. It assures smooth and accurate bundling for anyone and drastically improves productivity.
● Stable bundling with the most desired tape tension Bundling tension is variably adjustable from soft to strong, fitting to the nature of bundling material.
Suitable
Electronic parts、Hardware products、Gift box、Small package article、medicinal tablet、small IC chip、Envelope、Voucher、Bill、Opto-electronics blister box、panel、PCB、Makeup products and so on…
Specification

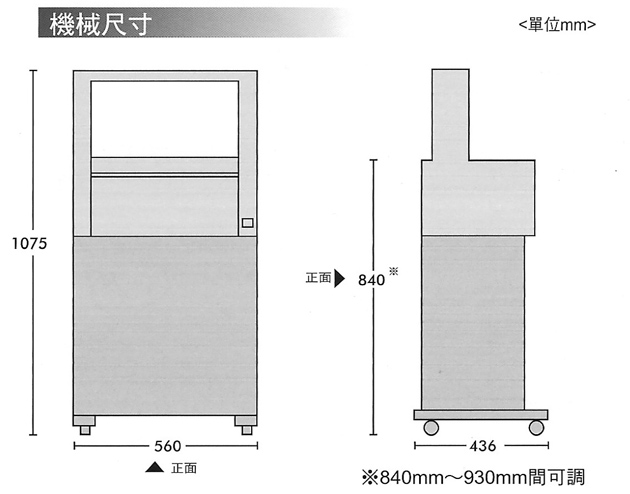

●Bundling size：Please refer TAPIT-WII、WX. Special made : TP-50W ( tape width in 50mm ) ●Sealing method：Welding by hot plate. ●Tape：Craft paper tape、White paper tape、OPP film -30mm (W) x 800M(L). ●Bundling tension：Variable adjustment. ●Power source：AC 110/220V 60/50Hz 200W(power consumption). ●Options：Optional foot switch for bundling. ●Dimensions：560(W) x 436(D) x 1075 ~ 1165mm(H). Please refer below picture.
Specifications are subject to change without notice.
