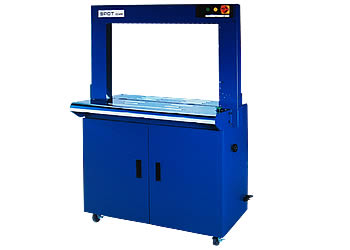

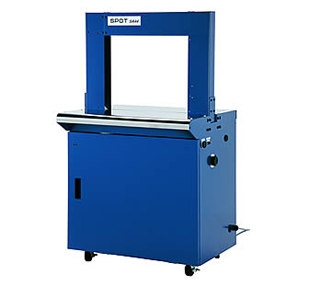

SA-44 Automatic Strapping Machine

Enlarge photo

Compack type / CE standard
Easy and secure strapping for IC TRAY

Specialty strapping machine – The IC packaging and testing industry and Electronics industry specified. To bundle up the IC TRAY、Opto-electronics blister box、panel、PCB and so on.
Match up – Japanese made 5, 6, 7, 8, 9 and 12mm Conductive Soft PP Strapping Band & P.P. Strapping soft band. Band is environmentally friendly and fit in with RoHS.

Features

● Machine imported from Japan.
● Large Arch Type.
● Option : Customized stopper

Suitable

Electronics IC Tray、Opto-electronics blister box、panel、PCB and so on.

Specification

● Smallest Arch size : 500(W) x 340(H)mm, Next Arch size : 500(W) x 500(H)mm
● Strap width : 5, 6, 7, 8, 9 and 12mm
● Coil size : Inner 200mm/Outer 420mm
● Capacity : 40 straps/min
● Adjustable tension : 2-60kgs
● Sealing methon : Heat seal
● Table height : 800mm adjustable
● Machine size : About 765(W) x 625(D) x 1334(H)mm, w/arch 500(W) x 340(H)mm
● Machine weight : 125 Kgs
● Power supply : 220 - 240V, 1 phase 50Hz
● Power rating : 0.55KVA
● Safety standard : CE standard

Smalleset Arch : 500 (W) x 400 (H) mm
Next Arch : 500 (W) x 500 (H) mm

We have other available Automatic strapping machine to select, please e-mail us if you want to have more information.
