JAPAN “SPOT” Desk Top Type( MINI ) Fully Automatic
Automatic Strapping machine

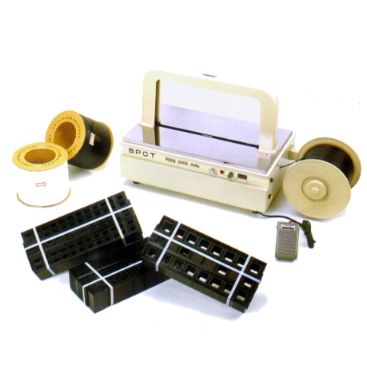

Enlarge photo
Product description:

Newest Type with PLC and fit in with CE standard
Easy and secure strapping for IC TRAY

● Equipment:PLC(Programmable Logic Controller)、SSR(Solid State Relay)、Noise Filter、Conductive plastic Arch.
Specialty strapping machine – The IC packaging and testing industry and Electronics industry  specified.  To bundle up the IC TRAY、Opto-electronics blister box、panel、PCB and so on……fragile soft products.
Match up – Japanese made Conductive Soft PP Strapping Band & Anti-static P.P. Strapping soft band.  Band is environmentally friendly and fit in with RoHS.

Features
Machine imported from Japan.
Desk Top Type, small size occupies small space.
Shortly warming time: Machine is ready to operate within from 15 to 30 seconds after turning switch on.
Motor is automatically activated before each operation thus saving electricity.
Odor removable : Bad odor is cleared by deodorizing equipment.
Heater plate temperature need not be adjusted.
Tension adjustable: Max 10kgs, with Japanese made Conductive Soft PP Strapping Band & Anti-static P.P. Strapping soft band.  Band wont’ break IC Tray.
Save electricity in 135W、low sound volume in 70dBA、Simply maintenance, machine life can get as high as 10 years.
Auto feeding with special backrush strap system to let strap stay in the arch.
Additional install the customized stopper.
Suitable
Electronics IC Tray、Opto-electronics blister box、panel、PCB and so on……fragile soft products.
Specification
Tension Strength:the Max is 10kgs.
Sealing method:welding by hot plate.
Strapping speed:19 bundle/Min.
Power:AC 100V / 110V / Special made 220V、240V   50/60Hz.
Electrical Component:Motor 25W x 2sets
Weight :20kgs.
Arch size:2 types- 「general one」and「large one」, please refer the size as below pictures.

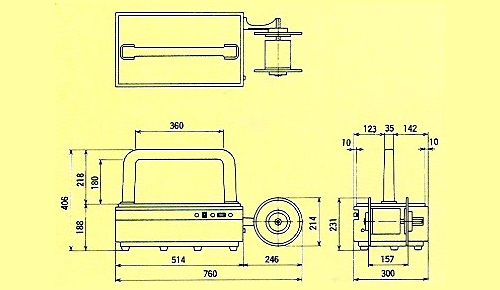

General Arch : 360 (W) x 180 (H) mm

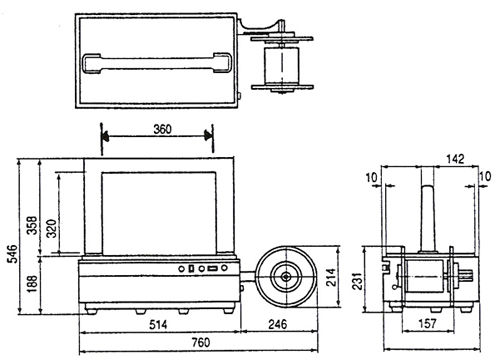

Large Arch”: 360 (W) x 320 (H) mm

SGS report for Anti-static P.P. Strapping soft band...431KB
SGS report for Conductive Soft PP Strapping Band...348KB
