CORATEX ENTERPRISE CO., LTD. » PRODUCT » Auto strapping machine w/Big Arch »

Features

● Machine imported from Japan.
● Desk Top Type, small size occupies small space.
● Shortly warming time: Machine is ready to operate within from 15 to 30 seconds after turning switch on.
● Motor is automatically activated before each operation thus saving electricity.
● Odor removable : Bad odor is cleared by deodorizing equipment.
● Heater plate temperature need not be adjusted.
● Tension adjustable: Max 10kgs, with Japanese made Conductive Soft PP Strapping Band & Anti-static P.P. Strapping soft band. Band wont’ break IC Tray.
● Save electricity in 135W、low sound volume in 70dBA、Simply maintenance, machine life can get as high as 10 years.
● Auto feeding with special backrush strap system to let strap stay in the arch.
● Additional install the customized stopper.

Suitable

Electronics IC Tray、Opto-electronics blister box、panel、PCB and so on……fragile soft products.

Specification

● Tension Strength：the Max is 12kgs.
● Sealing method：welding by hot plate.
● Strapping speed：19 bundle/Min.
● Power：AC 100V / 110V / Special made 220V、240V 50/60Hz.
● Electrical Component：Motor 25W x 2sets
● Weight ：20kgs.

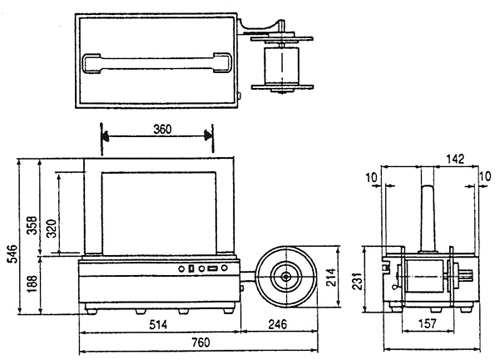

● Arch size：2 types- 「general one」and「large one」, please refer the size as below pictures.
