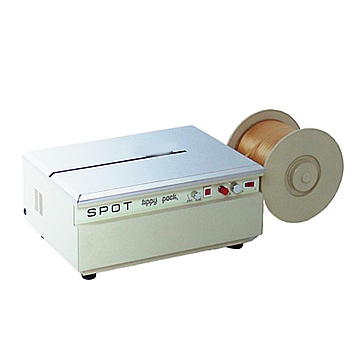

JAPAN “SPOT” Desk Top Type( MINI ) Fully Automatic
Semi-Automatic Strapping machine
Enlarge photo

Newest Type with PLC and fit in with CE standard
Equipment:PLC(Programmable Logic Controller)、SSR(Solid State Relay)、Noise Filter、Conductive plastic Arch.

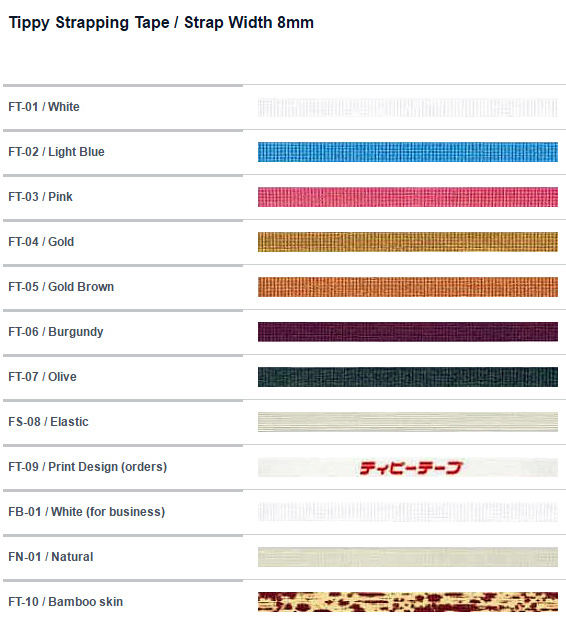

● Match up – Japanese made Color Soft PP Strapping Band.

Features
Machine imported from Japan.
Desk Top Type, small size occupies small space.
Shortly warming time: Machine is ready to operate within from 15 to 30 seconds after turning switch on.
Motor is automatically activated before each operation thus saving electricity.
Odor removable : Bad odor is cleared by deodorizing equipment.
Heater plate temperature need not be adjusted.
Tension adjustable: Max 10kgs, with Japanese made Color Soft PP Strapping Band.
Save electricity in 135W、low sound volume in 70dBA、Simply maintenance, machine life can get as high as 10 years.
Auto feeding with special backrush strap system to let strap stay in the arch.
Additional install the customized stopper.
Suitable
Small box articles.
Specification
Tension Strength:the Max is 10kgs.
Sealing method:welding by hot plate.
Strapping speed:manual operated, depends on manpower.
Power:AC 100V / 110V / Special made 220V、240V   50/60Hz.
Electrical Component:Motor 25W x 2sets
Weight :17kgs.

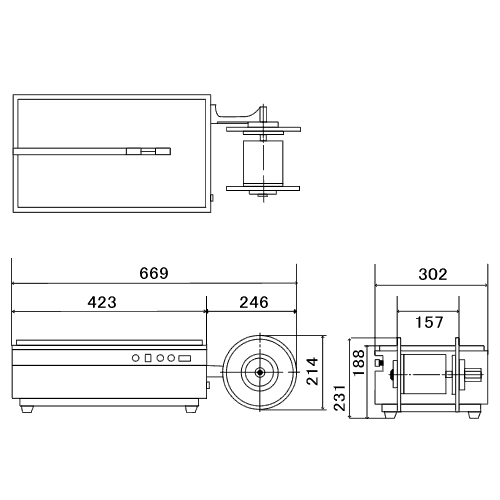

Machine size:Please refer below picture.
