| Features |
• This table-top type allows the use of 40 micron film tapes.
• Film and paper tapes can be used.
• Low running cost.
• Positioning of a printed mark on the tape is possible ( option ).
|
| Suitable |
|
Four color cards, Label, Business card, IC card, Game card, Ghost money, Electronic parts, Small packing box, Bill, Envelope, voucher, panel Makeup products and so on…
|
| Specification |
● Sealing method：Welding by hot plate.
● Tape：Up to 75g Craft paper tape, Up to 80g White paper tape, 40u or Up to 40u OPP film, 110u Magic cut tape -20mm, 30mm, 40mm(W). Please use the designated TAPE.
● Power ：110/220V 60/50Hz power consumption 300W .
|
● Machine Specification ：依TAPE寬度區分需求。
|
Model by TAPE width - 20/30/40mm
|

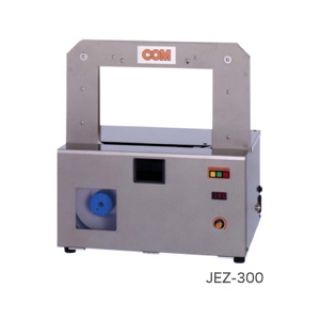

JEZ-300- 20 / 30 / 40
|
|
Machine size- W x H x D
|
510 X 540 X 330mm
|
|
Table height
|
273mm
|
|
Arch size
|
300(W) x 200mm(H)
|
|
Banding size
|
Max. 300mm(W) x 200mm (H)
|
|
Banding Speed
|
22 times/minute
|
|
Weight
|
34kgs
|
|
Printed mark positioning
|
Option ( preliminary arrangement )
|
● Use only the tapes supplied or approved by the machine manufacturer.
● Other than tapes mentioned above: color tapes, printed tapes, etc., can also be made to order.
