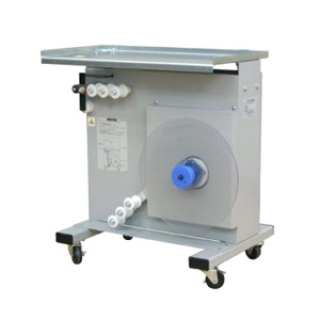

For table TOP model taping machine. For long film tape and paper tape Higher efficiency. Easy portable type.
Features

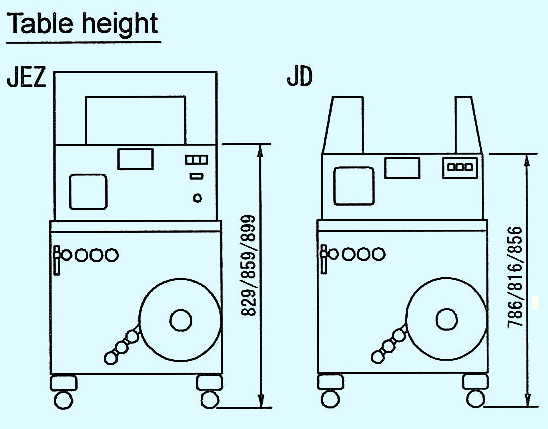

•Using long tape rolls, less frequency of loading new tape rolls is secured. •Easy moving of the machine due to four free casters. •Table height is adjustable in three position. •JEZ and JD models can be used on this tape stand. •JEZ and JD now ready in your factory can be used ( simple and easy modification required ).
Suitable
Four color cards, Label, Business card, IC card, Game card, Ghost money, Electronic parts, Small packing box, Bill, Envelope, voucher, panel Makeup products and so on…
Specification
●Sealing method：Welding by hot plate. ●Tape ：Up to 75g Craft paper tape、Up to 80g White paper tape、Up to 80u OPP film、110u Magic TAPE - 30mm and 40mm(W). Please use the designated TAPE. ●Power supply：110/220V 60/50Hz. ●Machine Specifications： Please choose by TAPE width as below.
Model by TAPE width - 30/40mm
BCS-30/40-JD
(for JD type)
BCS-30/40-JEZ300 (for JEZ-300 type)
BCS-30/40-JEZ400 (for JEZ-400 type )
Machine size- W x H x D
500 x 601(-30/+40) x 376mm
547.5 x 601(-30/+40) x 376mm
647.5 x 601(-30/+40) x 376mm
● Carefully determine tape types. ● Special tapes such as colored tapes, printed tapes, etc. are also available. ● Specifications subject to change without notice.
